NuPhy Gateron Low-profile 3.0 Switches

NuPhy Gateron Low-profile 3.0 Switches

$29.00 AUD
$29.00 AUD
Sale Sold out
Tax included.
Option
  • 1-Year warranty
  • Secure payments

36pcs/Set

Currently only compatible with NuPhy Kick75 and Air75 V3.

NOTE: Not compatible with NuPhy Air V1 and Air V2 series.

SHIPPING INFORMATION

All orders will be shipped by NuPhy within 48 hours of order confirmation, tracking numbers are provided no later than a day after shipment on business days.

Notice
Once your parcel produced CUSTOM DUTY, please contact us as soon as possible.

View full details

Kick75 / Air75 V3

NOTE: Not compatible with NuPhy Air V1 and Air V2 series.

Listing11 with text v2.png__PID:18c6423a-82dd-4c0d-b5cd-82d08d0a02ab
Listing13 with text v2.png__PID:e72218c6-423a-42dd-bc0d-75cd82d08d0a
Listing12 with text v2.png__PID:2218c642-3a82-4dfc-8d75-cd82d08d0a02
Listing14 with text v2.png__PID:ffe72218-c642-4a82-9dfc-0d75cd82d08d

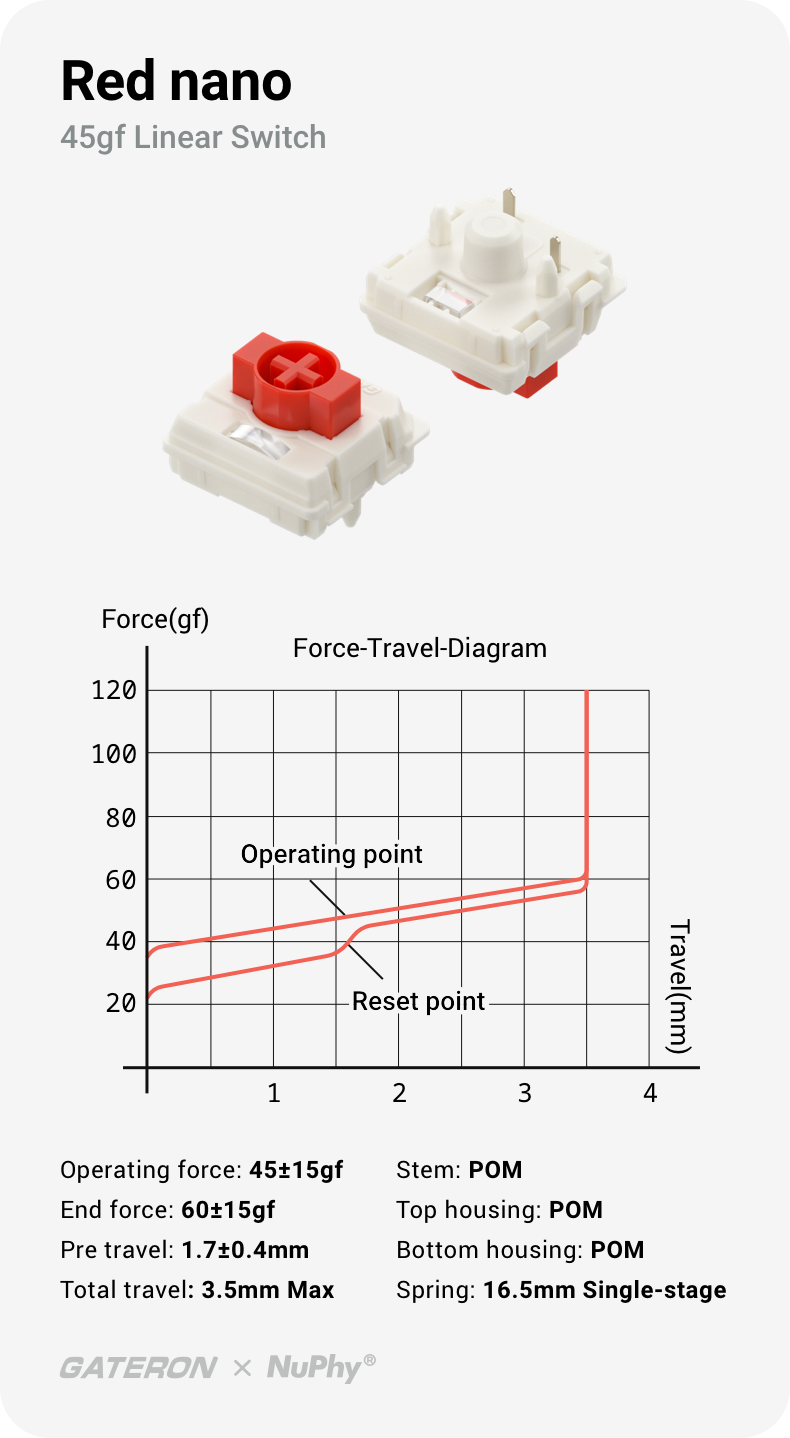

type
linear

travel distance
pre-travel: 1.7±0.4mm
total travel: 3.5 Max

force
operating force: 45±15gf
end force: 60±5gf

mounting pins
5-pin

materials
stem: pom
top housing: pom
bottom housing: pom

spring
16.5mm single-stage spring

factory lube
yes

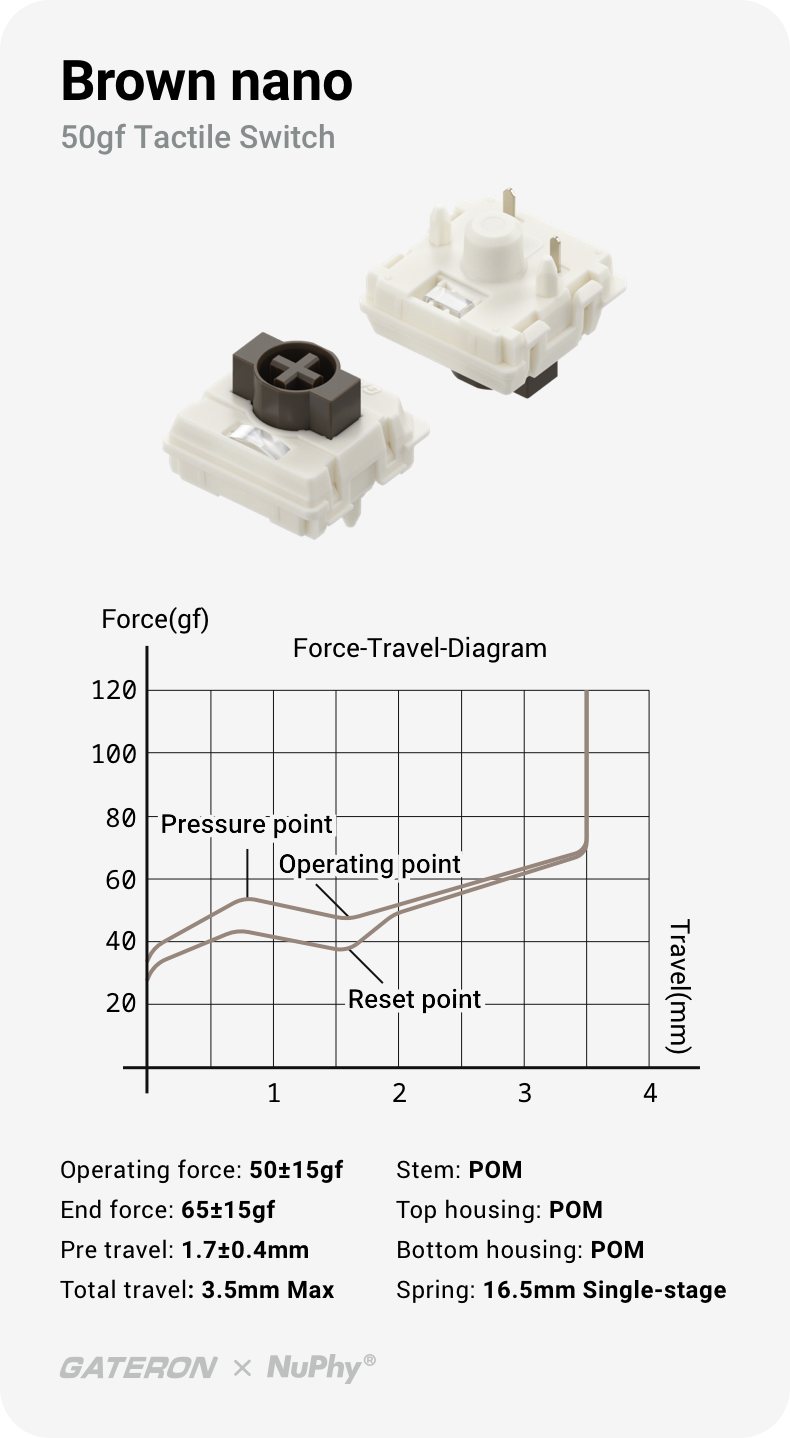

type
tactile

travel distance
pre-travel: 1.7±0.4mm
total travel: 3.5 Max

force
operating force: 50±15gf
end force: 65±5gf

mounting pins
5-pin

materials
stem: pom
top housing: pom
bottom housing: pom

spring
16.5mm single-stage spring

factory lube
yes

type
linear

travel distance
pre-travel: 1.2±0.3mm
total travel: 3.4 Max

force
operating force: 37±15gf
end force: 55±5gf

mounting pins
5-pin

materials
stem: pom
top housing: pom
bottom housing: pom

spring
16.5mm single-stage spring

factory lube
yes

type
linear

travel distance
pre-travel: 1.7±0.4mm
total travel: 3.2+0.2mm

force
operating force: 42±15gf
end force: 55±5gf

mounting pins
5-pin

materials
stem: pom
top housing: pc
bottom housing: nylon pa66

spring
16.5mm single-stage spring

factory lube
yes
