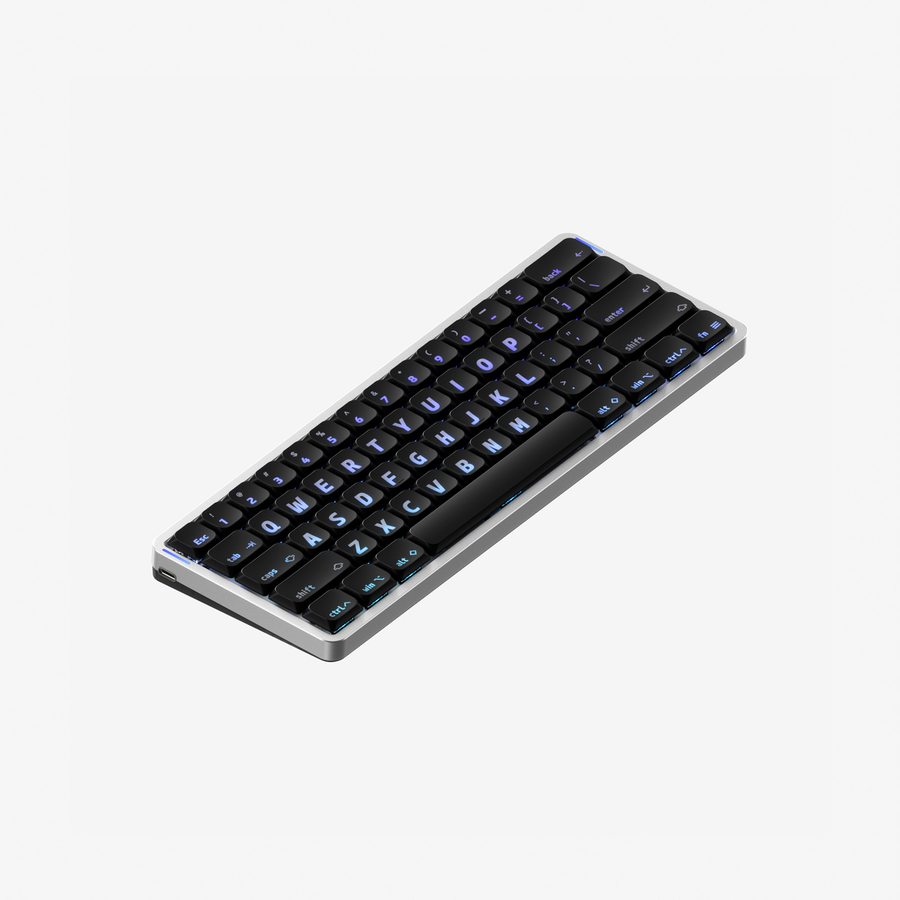

NuPhy Air60 HE Magnetic Switch Low-Profile Gaming Keyboard

NuPhy Air60 HE Magnetic Switch Low-Profile Gaming Keyboard

Regular price $199.00 AUD
Regular price Sale price $199.00 AUD
Sale Sold out
Tax included.
Swith
  • 1-Year warranty
  • Secure payments

Features:

  • The world's 1st low-profile magnetic switch keyboard
  • True 8kHz polling rate
  • Ultra-low latency of 0.125ms
  • 0.01mm RT sensitivity
  • 0.1~3.3mm actuation range

SHIPPING INFORMATION

All orders will be shipped by NuPhy within 48 hours of order confirmation, tracking numbers are provided no later than a day after shipment on business days.

Notice
Once your parcel produced CUSTOM DUTY, please contact us as soon as possible.

View full details
download (7).jpg__PID:763beeaa-c63f-4da7-9907-d6d81acdb6a7

Zero fat, HEroic performance

The thinnest, fastest, and most advanced magnetic switch keyboard ever. With the ultra-smooth low-profile Magnetic Jade and lightning-fast 0.1ms response, it effortlessly handles everything—from deep work to the most intense gaming.

download (21).jpg__PID:1427efc9-8335-4960-b73b-a3ba601dcccf
download (6).png__PID:9a5945d9-1427-4fc9-8335-a960373ba3ba
download (5).png__PID:e3122877-9a59-45d9-9427-efc98335a960
download (19).jpg__PID:5945d914-27ef-4983-b5a9-60373ba3ba60
download (4).png__PID:92e31228-779a-4945-9914-27efc98335a9
download (3).png__PID:3e92e312-2877-4a59-85d9-1427efc98335
download (2).png__PID:dc40b048-4e65-47a7-ad27-b8928f5451ce
download (18).jpg__PID:28779a59-45d9-4427-afc9-8335a960373b
download (16).jpg__PID:779a5945-d914-47ef-8983-35a960373ba3
download (17).jpg__PID:1228779a-5945-4914-a7ef-c98335a96037

DESIGN

So thin, it feels like cHEating

Air60 HE continues to assume the minimalist style of the Air series, featuring iconic sidelights and and the thin and light body. The unibody aluminum frame ensures its sturdiness and durability. We also designed brand new themed keycaps for the Air60 HE, including transparent keycaps for the first time, giving the Air60 HE unprecedented gaming fun.

air60he.jpg__PID:11275b67-3a0a-463b-9c59-e4736ea80d27
20240813173421.jpg__PID:275b673a-0ae6-4b5c-99e4-736ea80d27b2

Ultra-compact, ultra-thin. The 60% layout offers plenty of space for seamless mouse control. With an ultra-thin design of just 13.5~18.8mm, it not only ensures ergonomic comfort for your wrists but is also better suited for fast-paced tasks than high-profile keyboards.

download (5).jpg__PID:6dbdf5aa-4c00-459f-a074-d2d141abbf58
download (4).jpg__PID:bdf5aa4c-0035-4f60-b4d2-d141abbf584e

Wrist Rest and deskmats. We designed a new Mono Wrist rest for the Air60 HE, with a variety of deskmat options.

download (22).jpg__PID:cc06489b-30b7-4aab-895a-a7328ac6f009
download (23).jpg__PID:06489b30-b77a-4b89-9aa7-328ac6f009b3

UNMATCHED PERFORMANCE

Zero in on your target,
while we zero out the latency

Air60 HE’s claim to be the world’s fastest keyboard encompasses two aspects: the fastest actuation and the fastest response. Magnetic switches enable actuation points to be adjusted from 0.1mm to 3.3mm, with 0.1mm offering the shortest trigger distance. A new, advanced MCU ensures a true 8000Hz polling rate, reducing latency to an astonishing 0.1ms, surpassing all known gaming keyboards.

download (1).jpg__PID:82e0273e-6f12-4a79-a076-6331af5b94fe

0.1mm actuation point. Magnetic switches eliminate debounce delay and cut actuation distance from 2.0mm (Red mechanical switch) and 1.1mm (Silver mechanical switch) to a mere 0.1mm. Free from metal contacts, they deliver smoother performance and last 50% to 100% longer than traditional mechanical switches.

download (13).png__PID:c991c926-2563-406d-b608-e5dfb88f9b5c

0.1ms latency, true 8000Hz polling rate. The Air60 HE is the world’s first low-profile keyboard with both 8000Hz polling and 8000Hz PCB scan rates. Its latency is drastically lower than most 8000Hz magnetic switch keyboards, offering a game-changing 50x faster response than conventional gaming keyboards. This breakthrough performance sets a new benchmark for latency.

download (12).png__PID:49414c3a-409b-4af6-9209-e8eb44f231e5

0x Compromise on speed & RGB. The race to a lower latency starts when the transverse voltage builds up in the Hall effect sensors, individually packaged and powered from the LEDs they retain their sensititity even when the RGB effects are maxed out. Similar arrangments at the end of the signals' journey ensures the MCU is at full throttle handling their arrivals, utilizing a self-developed filtering algorithm that picks them at industry-leading accuracy and speed.

download (24).jpg__PID:0dcd41e4-98b5-4eb0-89e3-297a7b5928a9

HALL EFFECT

Asymmetric Advantage

Ultra-low latency is just one of the many benefits magnetic switches offer gamers. The real game-changer is Rapid Trigger and the ever-expanding features. In addition to the commonly used Rapid Trigger (RT), Rapid Shift (RS), SOCD, and KDS/MT/TGL, we’ve introduced the all-new Hyper Tap (HT). All of this gives magnetic switch keyboard users an asymmetric edge, one that will only widen as the community grows.

download (6).jpg__PID:92c6d2d7-492d-48ac-9126-536851e7bf0b
download (10).png__PID:bd1d48dc-ceed-4f4c-bcf1-db64903e7125

Ex-actuate

0.1mm, 3.3mm, or exactly .10 of an inch...with both high dynamic range and travel resolution Air60 HE got your back whether you want to be the fastest gun in the West, or tune your rhythm in sync with that particular spell's cooldown timer.

download (7).png__PID:39bd1d48-dcce-4d9f-8c7c-f1db64903e71

Rapid Trigger

Ready for your next move before the first hit even lands on the enemy? With just 0.01mm of break, your trusted companion will execute commands instantly and repeatedly. In rapid trigger mode, the Air60 HE handles even the most complex maneuvers seamlessly and effortlessly, as if it were an extension of your nervous system. The new Pro feature allows you to perform two different actions with a single press and release.

download (8).png__PID:c63739bd-1d48-4cce-ad9f-4c7cf1db6490

Hyper Tap

When you release a key and trigger the Reset value set in RT, it will automatically trigger another key value. For example, if you slightly release the A key and trigger Reset, the function will immediately activate D. Although it works differently from RS and SOCD in principle, it can still provide significant benefits for stopping and shooting in the opposite direction.

download (9).png__PID:3739bd1d-48dc-4eed-9f4c-7cf1db64903e

Dynamic Keystroke

High precision and minimized errors also enable true analog input, as you can now pack a recorded amount of information and up to 4 actions in one stroke. Combos, spellcastings, macros….can all become chords in the music that follows your finger, whose tempo you will decide-among 2 positions out of 40 in the downmove, and another 2 in the upmove.

SWITCHES

Smaller, yet superior

Magnetic switches are the new standard, and Gateron Magnetic Jade switches are the true benchmark for magnetic switches. From the beginning of the design of the Air60 HE, we were determined to work with Gateron to bring the unparalleled feel, performance, stability, and typing sound of Magnetic Jade switches to a low-profile version. Today, this goal has been successfully achieved. feat.

All the latest technology in one. The low-profile Magnetic Jade features a dual-rail and dustproof stem design, vastly surpassing the stability of its high-profile version. All of this provides a solid foundation for the Air60 HE’s exceptionally small travel accuracy and RT accuracy. We also offer the Magnetic Jade Pro, with POM material for the top house, bottom house, and stem, delivering a smoother typing feel and a more thock sound.

download.png__PID:16382674-5b84-43b9-9c7d-a66f59c2da07
download (9).jpg__PID:2fc106da-673f-4b4c-81d6-30b2860c03e8

WEB DRIVER

Within a finger's reach

Settings and parameters editing are vital to the magnetic switch keyboard user experience. Through a new interactive design approach, NuPhyIO aims to make this unwieldy task more accessible for casual and experienced users alike. Every single parameter affecting the system performance is tweakable, and the tweaks are visible in the UI in real-time as they take effects, such as the per-key rapid-trigger/sensitivity annotations on the keyboard preview.
Click here to launch NuPhyIO >

download.jpg__PID:ad2d868d-ce93-4211-ae71-4b6c086b6ea0

Mac, Windows, Linux...you name it. NuPhyIO's key remapping and macro work seamlessly on all major desktop platforms, or any platform that supports Chromium-based browsers, making it even easier to customize the Air60 HE to your heart's content.

download (11).png__PID:66a3ac96-fe91-4529-871c-9b3eafeec5d8

Introducing RapidSwitch. A complete overhaul of the mode on earlier NuPhy keyboards that provides integration and organization of all data associated with a user role, such as layers, lighting, travel distance & sensitivity. You can have different modes for different OSes, or different games, and they can all be selected by the redesigned RapidSwitch. No more superheroic effort to get a superhuman APM.

download (25).jpg__PID:49585141-1d96-471c-9e53-e6101c84dcbc

Seeing is Believing. For the first time, tough technical concepts like the dead zone and resolution are configurable in a visualized and animated manner. You can adjust them on the fly and perceive the difference with both your fingers and eyes, along with a bunch of other parameters. Similarly manipulable and visualized are the layers, the basic units of layout editting in modern keyboard configurators, up to 12 of which are supported, with each mode having 4.

download (26).jpg__PID:bf6e0314-9556-45c5-a2cc-afb9fe1692f6

SOUND

Invisible but audible

To design the first low-profile keyboard for magnetic switches, we prioritized travel accuracy, which led us to exclude several popular structural elements such as gasket mounts, PC/POM plates, sound dampers and switch pads. With options significantly narrowed, we incorporated PCB foam, plate foam and bottom silicone to ensure a clean typing sound.

download (14).jpg__PID:ca046dd4-a120-4ef6-8b57-2b0f95540bbb

KEYCAPS

Durability meets dazzle

For gamers, strong and durable keycaps are crucial. The Air60 HE features five-sided dye-sub nSA keycaps, which are designed to withstand the most intense usage with ease thanks to their superior durability. In addition, the transparent version of nSA keycaps introduced for the first time brings unmatched visual appeals to Air60 HE, making it not only a powerful weapon on the battlefield, but also a dazzling view on your desktop.

download (13).jpg__PID:ef29b2db-bdfb-4f23-8af1-56581cf70fdd

The dark side goes bright. We’ve brought the south-facing shine-through keycaps to nSA profile. Their bold typography and detailed design showcase their disruptive nature. With the same groundbreaking technique, Canopus shine-through keycaps will shine on your desktop like never before.

download (27).jpg__PID:531fc192-f01a-46d4-9c2d-d12925aaf699

IN THE BOX

download (14).png__PID:72a100f8-f87d-4052-8714-f714cd7f4a3f

PRE-BUILT KEYBOARD
1 x Air60 HE Keyboard
1 x 1.5m (59 inches) Cable
1 x Keycap/Switch Puller
6 x Extra PBT Keycaps
12 x Extra PC Keycaps

1 x Sticker Set
1 x Quick Guide/Poster
Download

TECH SPECS

i.shgcdn.png__PID:8c422c5f-83dc-4a5a-ab4d-fc3e2c9a7475

SPECIFICATION
Layout: ANSI 60%
Number of Keys: 61
Switch Type: Low-Profile Magnetic Switches
Stabilizer Type: Plate Mounted
Mount Type: Top
Hot-swappable Support: Yes
N-key Rollover Support: Yes
Backlight: South-facing RGB-LED
Backlight Modes: 20
Compatible System: macOS/Windows/Linux/Android/iOS Operating Environment: -10 to 50℃
MCU: Nu2-8K-D-2407

CONNECTION
Wired Polling Rate: 8000Hz
PCB Scan Rate: 8000Hz

MATERIALS
Top Case: Aluminum
Bottom Case: ABS

SIZE AND WEIGHT
Long 297.2 mm (11.7 inches)
Wide 107.2 mm (4.22 inches)
Back Height 18.8 mm (0.74 inches)
Front Height 13.2 mm (0.52 inch)
Weight 534 grams (1.18 pound)
Type Angle 3.1º/ 7.0º / 10.0º

* Note: 1. Due to technical limitations, renderings of keyboards published by NuPhy are not accurate representations of the final products.
